Endmill Zamus Star

High Hardness Endmill

Characteristics

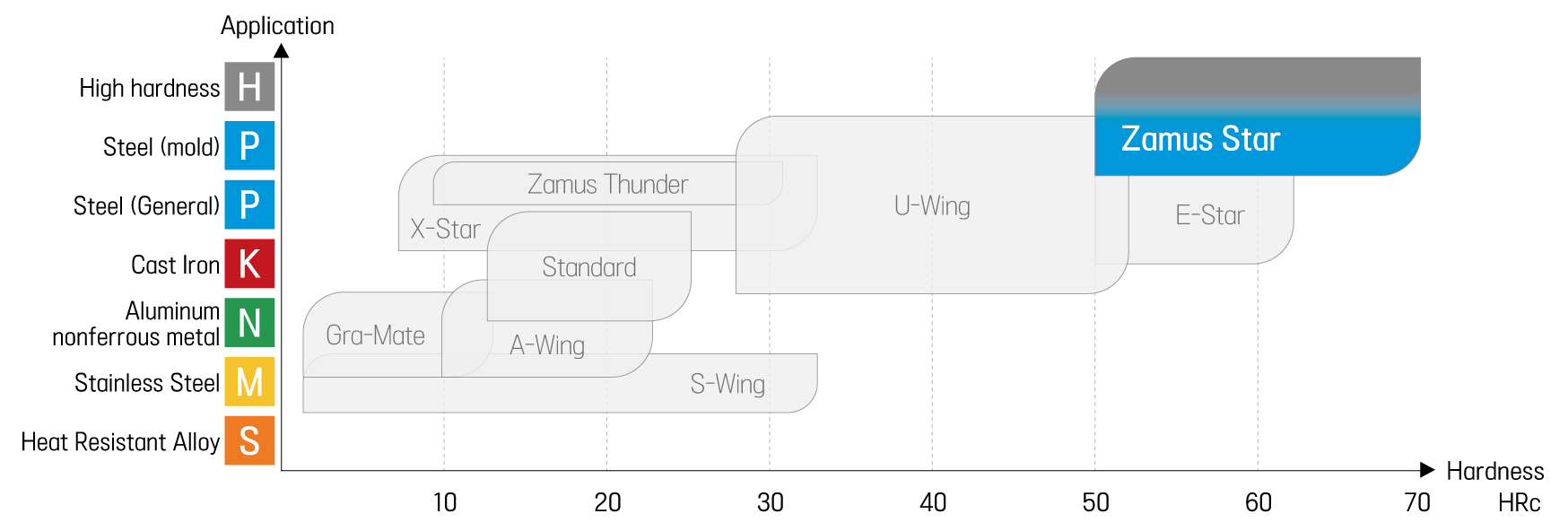

  • Suitable for high-speed processing of high-hardness workpieces (recommended: HRc 50 ~ 70) such as heat treated steel, alloy steel, and carbon steel
  • Suitable for various type of machining with diverse specifications such as long neck, rib, and tapered neck

Features

  • Enhanced cutting-edge wear resistance through ultra-fine grain carbide
  • Maintains hardness of the blade and has high temperature oxidation resistance and during high-speed processing by applying AlTiN coating
  • Stable performance with designed cutting edge suitable for high-speed machining of high-hardness workpieces

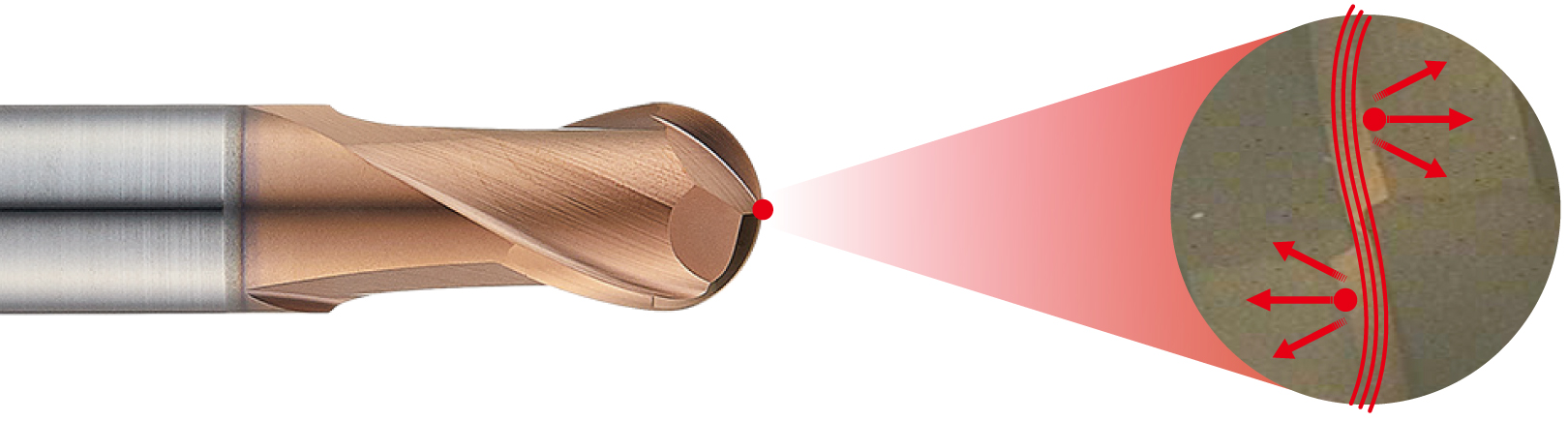

  • Stable tool life by distributing cutting load by applying S shape
  • Improved machining precision with 0.005mm radius Tolerance

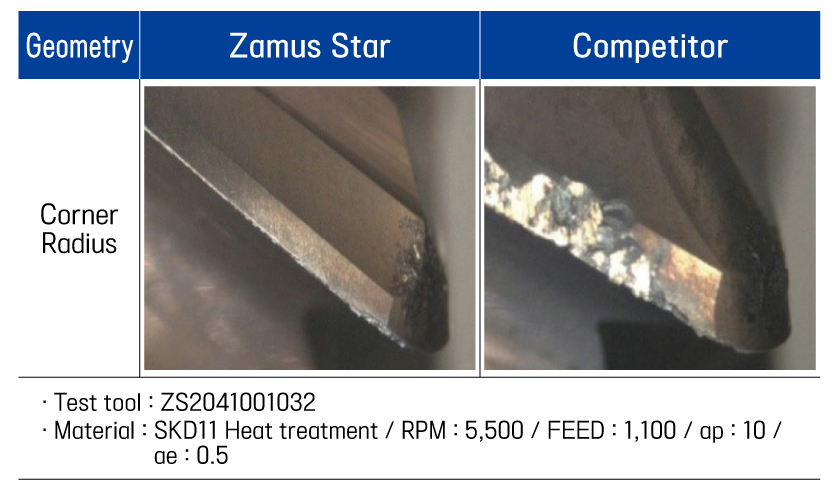

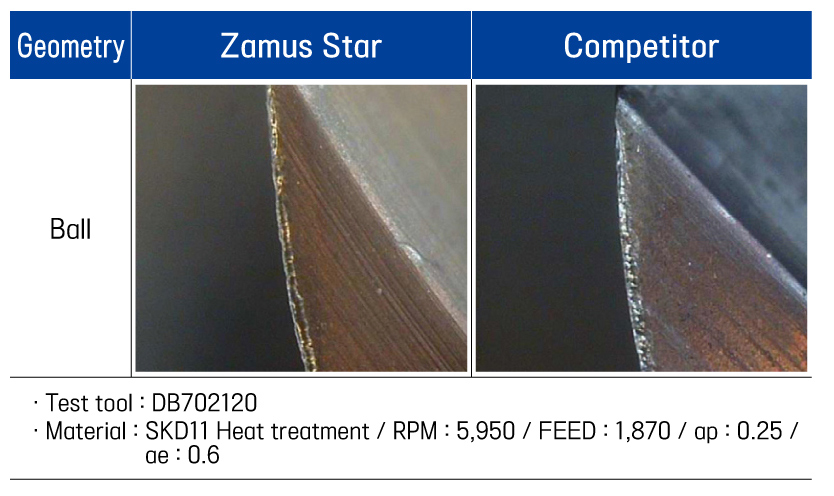

Case Study

Applications

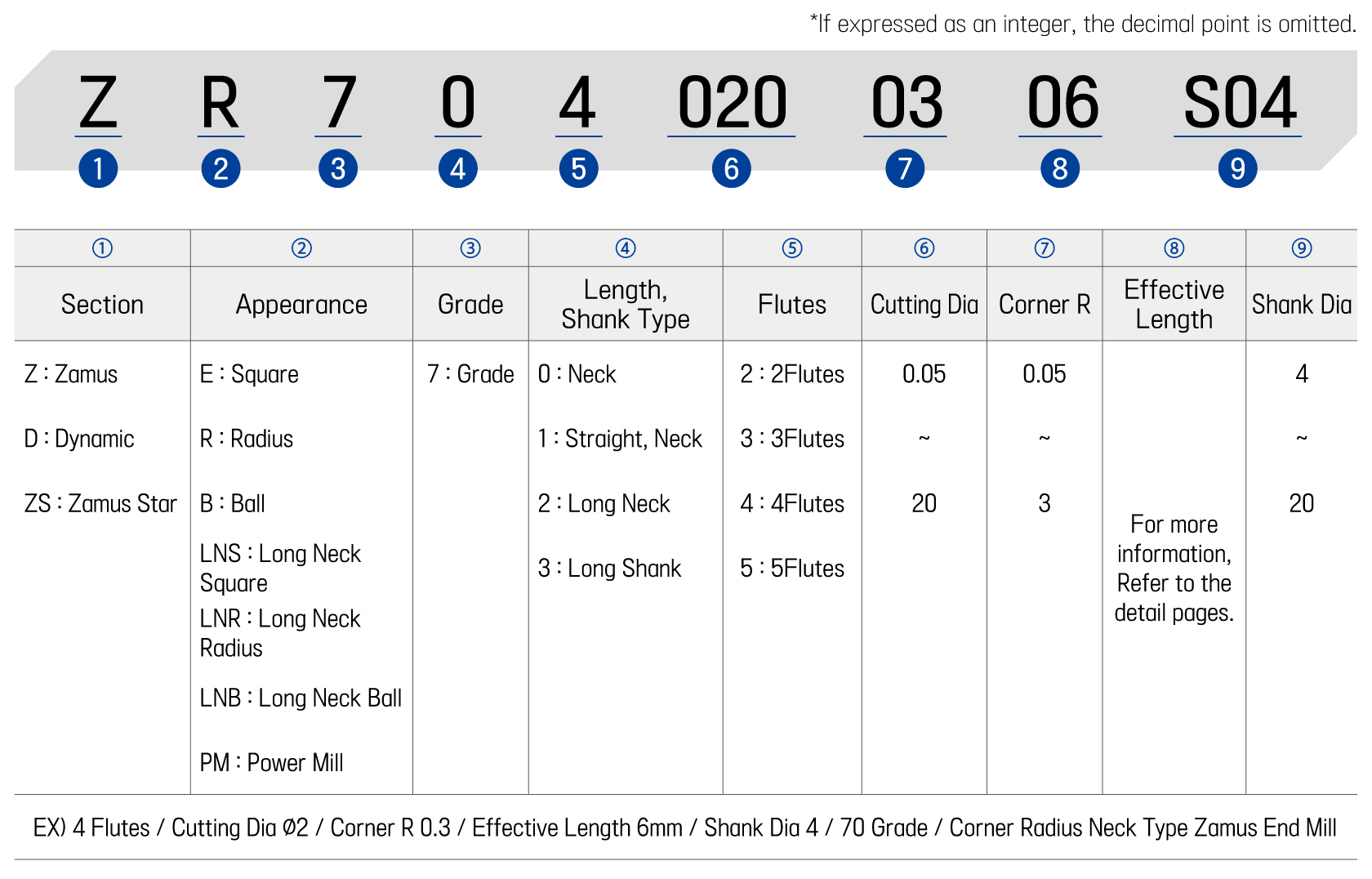

EDP No. System
