VMCM series 하이스 ㆍ JIS & DIN
-
DIN / 롤 탭 / TiCN코팅
-
- 막힌 구멍 가공용으로써 보통 주철, 강인 주철, 황동 주물, 열가소성수지 등의 피삭재를 대량 가공할 경우에 적합
- 코팅 적용으로 내구성이 향상 되었으며, 고능률적인 나사작업이 가능

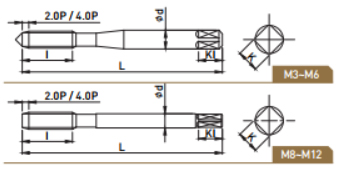

| EDP. No. | 호칭치수 | 등급 | L | I | d | K | KI | 오일홈수 | 식부길이 |
|---|---|---|---|---|---|---|---|---|---|
| VMCM0305020S | M3x0.5 | 6HX | 56 | 11 | 3.5 | 2.7 | 6 | 1 | 2P |
| VMCM0305020M | M3x0.5 | 6HX | 56 | 11 | 3.5 | 2.7 | 6 | 4 | 2P |
| VMCM0305040M | M3x0.5 | 6HX | 56 | 11 | 3.5 | 2.7 | 6 | 4 | 4P |
| VMCM0407020S | M4x0.7 | 6HX | 63 | 13 | 4.5 | 3.4 | 6 | 1 | 2P |
| VMCM0407020M | M4x0.7 | 6HX | 63 | 13 | 4.5 | 3.4 | 6 | 4 | 2P |
| VMCM0407040M | M4x0.7 | 6HX | 63 | 13 | 4.5 | 3.4 | 6 | 4 | 4P |
| VMCM0508020S | M5x0.8 | 6HX | 70 | 15 | 6.0 | 4.9 | 8 | 1 | 2P |
| VMCM0508020M | 5x0.8 | 6HX | 70 | 15 | 6.0 | 4.9 | 8 | 4 | 2P |
| VMCM0508040M | M5x0.8 | 6HX | 70 | 15 | 6.0 | 4.9 | 8 | 4 | 4P |
| VMCM0610020S | M6x1.0 | 6HX | 80 | 17 | 6.0 | 4.9 | 8 | 1 | 2P |
| VMCM0610020M | M6x1.0 | 6HX | 80 | 17 | 6.0 | 4.9 | 8 | 4 | 2P |
| VMCM0610040M | M6x1.0 | 6HX | 80 | 17 | 6.0 | 4.9 | 8 | 4 | 4P |
| VMCM0810020S | M8x1.0 | 6HX | 90 | 17 | 8.0 | 6.2 | 9 | 1 | 2P |
| VMCM0810020M | M8x1.0 | 6HX | 90 | 17 | 8.0 | 6.2 | 9 | 4 | 2P |
| VMCM0810040M | M8x1.0 | 6HX | 90 | 17 | 8.0 | 6.2 | 9 | 4 | 4P |
| VMCM0812520S | M8x1.25 | 6HX | 90 | 20 | 8.0 | 6.2 | 9 | 1 | 2P |
| VMCM0812520M | M8x1.25 | 6HX | 90 | 20 | 8.0 | 6.2 | 9 | 4 | 2P |
| VMCM0812540M | M8x1.25 | 6HX | 90 | 20 | 8.0 | 6.2 | 9 | 4 | 4P |
| VMCM1010020S | M10x1.0 | 6HX | 90 | 18 | 10.0 | 8.0 | 11 | 1 | 2P |
| VMCM1010020M | M10x1.0 | 6HX | 90 | 18 | 10.0 | 8.0 | 11 | 4 | 2P |
| VMCM1010040M | M10x1.0 | 6HX | 90 | 18 | 10.0 | 8.0 | 11 | 4 | 4P |
| VMCM1012520S | M10x1.25 | 6HX | 100 | 22 | 10.0 | 8.0 | 11 | 1 | 2P |
| VMCM1012520M | M10x1.25 | 6HX | 100 | 22 | 10.0 | 8.0 | 11 | 4 | 2P |
| VMCM1012540M | M10x1.25 | 6HX | 100 | 22 | 10.0 | 8.0 | 11 | 4 | 4P |
| VMCM1015020S | M10x1.5 | 6HX | 100 | 22 | 10.0 | 8.0 | 11 | 1 | 2P |
| VMCM1015020M | M10x1.5 | 6HX | 100 | 22 | 10.0 | 8.0 | 11 | 4 | 2P |
| VMCM1015040M | M10x1.5 | 6HX | 100 | 22 | 10.0 | 8.0 | 11 | 4 | 4P |
| VMCM1210020S | M12x1.0 | 6HX | 100 | 18 | 9.0 | 7.0 | 10 | 1 | 2P |
| VMCM1210020M | M12x1.0 | 6HX | 100 | 18 | 9.0 | 7.0 | 10 | 4 | 2P |
| VMCM1210040M | M12x1.0 | 6HX | 100 | 18 | 9.0 | 7.0 | 10 | 4 | 4P |
| VMCM1212520S | M12x1.25 | 6HX | 100 | 22 | 9.0 | 7.0 | 10 | 1 | 2P |
| VMCM1212520M | M12x1.25 | 6HX | 100 | 22 | 9.0 | 7.0 | 10 | 4 | 2P |
| VMCM1212540M | M12x1.25 | 6HX | 100 | 22 | 9.0 | 7.0 | 10 | 4 | 2P |
| VMCM1215020S | M12x1.5 | 6HX | 100 | 22 | 9.0 | 7.0 | 10 | 1 | 2P |
| VMCM1215020M | M12x1.5 | 6HX | 100 | 22 | 9.0 | 7.0 | 10 | 4 | 2P |
| VMCM1215040M | M12x1.5 | 6HX | 100 | 22 | 9.0 | 7.0 | 10 | 4 | 2P |
| VMCM1217520S | M12x1.75 | 6HX | 110 | 24 | 9.0 | 7.0 | 10 | 1 | 2P |
| VMCM1217520M | M12x1.75 | 6HX | 110 | 24 | 9.0 | 7.0 | 10 | 4 | 2P |
| VMCM1217540M | M12x1.75 | 6HX | 110 | 24 | 9.0 | 7.0 | 10 | 4 | 4P |
