VGHM series 하이스 ㆍ JIS & DIN
- DIN / 스트레이트 플루트 탭 / Steam HOMO
-
- 막힌 구멍 가공용으로 탄소강, 합금강 및 비철금속 가공에 있어 절삭칩 배출에 탁월한 홈 형상을 적용
- 코팅 적용으로 내구성이 향상되었으며, 고능률적인 나사 작업이 가능

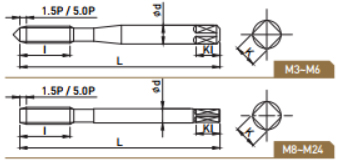

| EDP. No. | 호칭치수 | 등급 | L | I | d | K | KI | 날수 | 딘타입 DiN Type |
식부길이 |
|---|---|---|---|---|---|---|---|---|---|---|
| VGHM0305015 | M3X0.5 | 6H | 56 | 11 | 3.5 | 2.7 | 6 | 3 | 371 | 1.5P |
| VGHM0305050 | M3X0.5 | 6H | 56 | 11 | 3.5 | 2.7 | 6 | 3 | 371 | 5P |
| VGHM0407015 | M4X0.7 | 6H | 63 | 13 | 4.5 | 3.4 | 6 | 3 | 371 | 1.5P |
| VGHM0407050 | M4X0.7 | 6H | 63 | 13 | 4.5 | 3.4 | 6 | 3 | 371 | 5P |
| VGHM0508015 | M5X0.8 | 6H | 70 | 15 | 6 | 4.9 | 8 | 3 | 371 | 1.5P |
| VGHM0508050 | M5X0.8 | 6H | 70 | 15 | 6 | 4.9 | 8 | 3 | 371 | 5P |
| VGHM0610015 | M6X1.0 | 6H | 80 | 17 | 6 | 4.9 | 8 | 3 | 371 | 1.5P |
| VGHM0610050 | M6X1.0 | 6H | 80 | 17 | 6 | 4.9 | 8 | 3 | 371 | 5P |
| VGHM0810015 | M8X1.0 | 6H | 90 | 17 | 6 | 4.9 | 8 | 4 | 374 | 1.5P |
| VGHM0810050 | M8X1.0 | 6H | 90 | 17 | 6 | 4.9 | 8 | 4 | 374 | 5P |
| VGHM0812515 | M8X1.25 | 6H | 90 | 20 | 8 | 6.2 | 9 | 4 | 371 | 1.5P |
| VGHM0812550 | M8X1.25 | 6H | 90 | 20 | 8 | 6.2 | 9 | 4 | 371 | 5P |
| VGHM1010015 | M10X1.0 | 6H | 90 | 18 | 7 | 5.5 | 8 | 4 | 374 | 1.5P |
| VGHM1010050 | M10X1.0 | 6H | 90 | 18 | 7 | 5.5 | 8 | 4 | 374 | 5P |
| VGHM1012515 | M10X1.25 | 6H | 100 | 22 | 7 | 5.5 | 8 | 4 | 374 | 1.5P |
| VGHM1012550 | M10X1.25 | 6H | 100 | 22 | 7 | 5.5 | 8 | 4 | 374 | 5P |
| VGHM1015015 | M10X1.5 | 6H | 100 | 22 | 10 | 8 | 11 | 4 | 371 | 1.5P |
| VGHM1015050 | M10X1.5 | 6H | 100 | 22 | 10 | 8 | 11 | 4 | 371 | 5P |
| VGHM1210015 | M12X1.0 | 6H | 100 | 18 | 9 | 7 | 10 | 4 | 374 | 1.5P |
| VGHM1210050 | M12X1.0 | 6H | 100 | 18 | 9 | 7 | 10 | 4 | 374 | 5P |
| VGHM1212515 | M12X1.25 | 6H | 100 | 22 | 9 | 7 | 10 | 4 | 374 | 1.5P |
| VGHM1212550 | M12X1.25 | 6H | 100 | 22 | 9 | 7 | 10 | 4 | 374 | 5P |
| VGHM1215015 | M12X1.5 | 6H | 100 | 22 | 9 | 7 | 10 | 4 | 374 | 1.5P |
| VGHM1215050 | M12X1.5 | 6H | 100 | 22 | 9 | 7 | 10 | 4 | 374 | 5P |
| VGHM1217515 | M12X1.75 | 6H | 110 | 24 | 9 | 7 | 10 | 4 | 376 | 1.5P |
| VGHM1217550 | M12X1.75 | 6H | 110 | 24 | 9 | 7 | 10 | 4 | 376 | 5P |
| VGHM1415015 | M14X1.5 | 6H | 100 | 22 | 11 | 9 | 12 | 4 | 374 | 1.5P |
| VGHM1415050 | M14X1.5 | 6H | 100 | 22 | 11 | 9 | 12 | 4 | 374 | 5P |
| VGHM1420015 | M14X2.0 | 6H | 110 | 26 | 11 | 9 | 12 | 4 | 376 | 1.5P |
| VGHM1420050 | M14X2.0 | 6H | 110 | 26 | 11 | 9 | 12 | 4 | 376 | 5P |
| VGHM1615015 | M16X1.5 | 6H | 100 | 22 | 12 | 9 | 12 | 4 | 374 | 1.5P |
| VGHM1615050 | M16X1.5 | 6H | 100 | 22 | 12 | 9 | 12 | 4 | 374 | 5P |
| VGHM1620015 | M16X2.0 | 6H | 110 | 27 | 12 | 9 | 12 | 4 | 376 | 1.5P |
| VGHM1620050 | M16X2.0 | 6H | 110 | 27 | 12 | 9 | 12 | 4 | 376 | 5P |
| VGHM1815015 | M18X1.5 | 6H | 110 | 25 | 14 | 11 | 14 | 4 | 374 | 1.5P |
| VGHM1815050 | M18X1.5 | 6H | 110 | 25 | 14 | 11 | 14 | 4 | 374 | 5P |
| VGHM1825015 | M18X2.5 | 6H | 125 | 30 | 14 | 11 | 14 | 4 | 376 | 1.5P |
| VGHM1825050 | M18X2.5 | 6H | 125 | 30 | 14 | 11 | 14 | 4 | 376 | 5P |
| VGHM2015015 | M20X1.5 | 6H | 125 | 25 | 16 | 12 | 15 | 4 | 374 | 1.5P |
| VGHM2015050 | M20X1.5 | 6H | 125 | 25 | 16 | 12 | 15 | 4 | 374 | 5P |
| VGHM2025015 | M20X2.5 | 6H | 140 | 32 | 16 | 12 | 15 | 4 | 376 | 1.5P |
| VGHM2025050 | M20X2.5 | 6H | 140 | 32 | 16 | 12 | 15 | 4 | 376 | 5P |
| VGHM2215015 | M22X1.5 | 6H | 125 | 25 | 18 | 14.5 | 17 | 4 | 374 | 1.5P |
| VGHM2215050 | M22X1.5 | 6H | 125 | 25 | 18 | 14.5 | 17 | 4 | 374 | 5P |
| VGHM2225015 | M22X2.5 | 6H | 140 | 32 | 18 | 14.5 | 17 | 4 | 376 | 1.5P |
| VGHM2225050 | M22X2.5 | 6H | 140 | 32 | 18 | 14.5 | 17 | 4 | 376 | 5P |
| VGHM2415015 | M24X1.5 | 6H | 140 | 27 | 18 | 14.5 | 17 | 4 | 374 | 1.5P |
| VGHM2415050 | M24X1.5 | 6H | 140 | 27 | 18 | 14.5 | 17 | 4 | 374 | 5P |
| VGHM2420015 | M24X2.0 | 6H | 140 | 27 | 18 | 14.5 | 17 | 4 | 374 | 1.5P |
| VGHM2420050 | M24X2.0 | 6H | 140 | 27 | 18 | 14.5 | 17 | 4 | 374 | 5P |
| VGHM2430015 | M24X3.0 | 6H | 160 | 34 | 18 | 14.5 | 17 | 4 | 376 | 1.5P |
| VGHM2430050 | M24X3.0 | 6H | 160 | 34 | 18 | 14.5 | 17 | 4 | 376 | 5P |
