WROM series 초경 ㆍ JIS & DIN
- JIS / 롤 탭 / 비코팅
-
- 막힌 구멍 및 관통구멍 가공용으로써 비철금속 가공에 적합

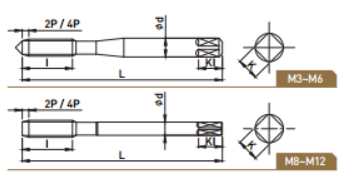

| EDP. No. | 호칭치수 | 등급 | L | I | d | K | KI | 오일홈수 | 식부길이 |
|---|---|---|---|---|---|---|---|---|---|
| WROM0305020S | M3 X 0.5 | GH5 | 46 | 11 | 4 | 3.2 | 6 | 1 | 2P |
| WROM0305020M | M3 X 0.5 | GH5 | 46 | 11 | 4 | 3.2 | 6 | 4 | 2P |
| WROM0305040M | M3 X 0.5 | GH5 | 46 | 11 | 4 | 3.2 | 6 | 4 | 4P |
| WROM0407020S | M4 X 0.7 | GH6 | 52 | 13 | 5 | 4 | 7 | 1 | 2P |
| WROM0407020M | M4 X 0.7 | GH6 | 52 | 13 | 5 | 4 | 7 | 4 | 2P |
| WROM0407040M | M4 X 0.7 | GH6 | 52 | 13 | 5 | 4 | 7 | 4 | 4P |
| WROM0508020S | M5 X 0.8 | GH6 | 60 | 16 | 5.5 | 4.5 | 7 | 1 | 2P |
| WROM0508020M | M5 X 0.8 | GH6 | 60 | 16 | 5.5 | 4.5 | 7 | 4 | 2P |
| WROM0508040M | M5 X 0.8 | GH6 | 60 | 16 | 5.5 | 4.5 | 7 | 4 | 4P |
| WROM0610020S | M6 X 1.0 | GH7 | 62 | 19 | 6 | 4.5 | 7 | 1 | 2P |
| WROM0610020M | M6 X 1.0 | GH7 | 62 | 19 | 6 | 4.5 | 7 | 4 | 2P |
| WROM0610040M | M6 X 1.0 | GH7 | 62 | 19 | 6 | 4.5 | 7 | 4 | 4P |
| WROM0812520S | M8 X 1.25 | GH7 | 70 | 22 | 6.2 | 5 | 8 | 1 | 2P |
| WROM0812520M | M8 X 1.25 | GH7 | 70 | 22 | 6.2 | 5 | 8 | 4 | 2P |
| WROM0812540M | M8 X 1.25 | GH7 | 70 | 22 | 6.2 | 5 | 8 | 4 | 4P |
| WROM1012520S | M10 X 1.25 | GH7 | 75 | 24 | 7 | 5.5 | 8 | 1 | 2P |
| WROM1012520M | M10 X 1.25 | GH7 | 75 | 24 | 7 | 5.5 | 8 | 4 | 2P |
| WROM1012540M | M10 X 1.25 | GH7 | 75 | 24 | 7 | 5.5 | 8 | 4 | 4P |
| WROM1015020S | M10 X 1.50 | GH7 | 75 | 24 | 7 | 5.5 | 8 | 1 | 2P |
| WROM1015020M | M10 X 1.50 | GH7 | 75 | 24 | 7 | 5.5 | 8 | 4 | 2P |
| WROM1015040M | M10 X 1.50 | GH7 | 75 | 24 | 7 | 5.5 | 8 | 4 | 4P |
| WROM1210020S | M12 X 1.0 | GH7 | 82 | 29 | 8.5 | 6.5 | 9 | 1 | 2P |
| WROM1210020M | M12 X 1.0 | GH7 | 82 | 29 | 8.5 | 6.5 | 9 | 4 | 2P |
| WROM1210040M | M12 X 1.0 | GH7 | 82 | 29 | 8.5 | 6.5 | 9 | 4 | 4P |
| WROM1212520S | M12 X 1.25 | GH7 | 82 | 29 | 8.5 | 6.5 | 9 | 1 | 2P |
| WROM1212520M | M12 X 1.25 | GH7 | 82 | 29 | 8.5 | 6.5 | 9 | 4 | 2P |
| WROM1212540M | M12 X 1.25 | GH7 | 82 | 29 | 8.5 | 6.5 | 9 | 4 | 4P |
| WROM1215020S | M12 X 1.5 | GH7 | 82 | 29 | 8.5 | 6.5 | 9 | 1 | 2P |
| WROM1215020M | M12 X 1.5 | GH7 | 82 | 29 | 8.5 | 6.5 | 9 | 4 | 2P |
| WROM1215040M | M12 X 1.5 | GH7 | 82 | 29 | 8.5 | 6.5 | 9 | 4 | 4P |
| WROM1217520S | M12 X 1.75 | GH8 | 82 | 29 | 8.5 | 6.5 | 9 | 1 | 2P |
| WROM1217520M | M12 X 1.75 | GH8 | 82 | 29 | 8.5 | 6.5 | 9 | 4 | 2P |
| WROM1217540M | M12 X 1.75 | GH8 | 82 | 29 | 8.5 | 6.5 | 9 | 4 | 4P |
